Linesman's Insulating 4-in-1 Box Spanner

KT223X4-INS

  • Box Wrench meets the ASTM 1505-10 standard 1000V rating
  • See-through insulating handle confirms metal ends are not connected
  • 1/2'', 9/16'', 5/8'' and 3/4'' sizes in one tool – 12 point sockets
  • Reverse ratcheting action by reversing switches at each end of the spanner
  • Covered gear mechanisms protect from dirt and debris
  • Higher gear, 48 tooth count helps reduce the swing arc
  • Larger pawl allows for easier direction change while wearing Class 2 gloves
  • Textured grooves in handle prevent slipping
  • Chrome-plated finish resists corrosion
Videos
Downloads
Images

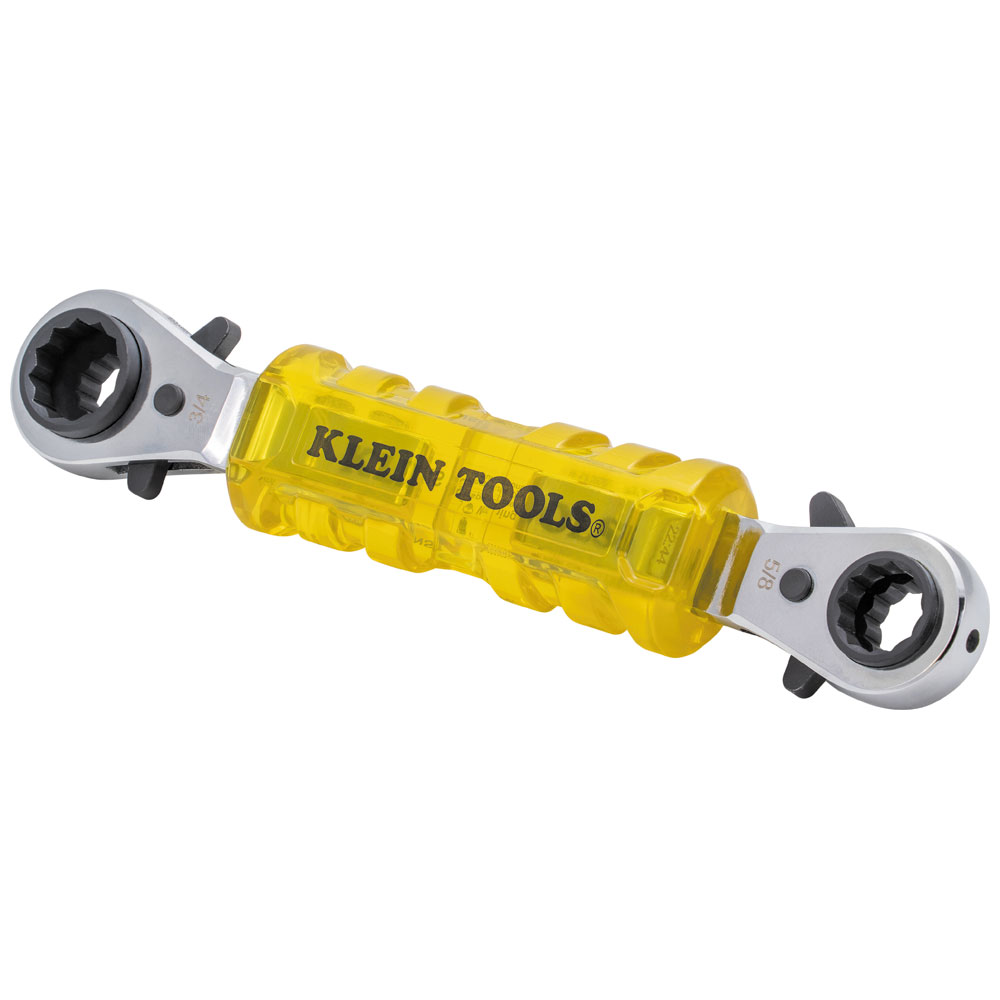

The Klein Tools Linesman's Insulating 4-in-1 Box Spanner is the only double-ended 4-in-1 spanner on the market to meet the ASTM standard 1,000 V rating. It features a transparent handle showing that the metal ends of the spanner are not touching. The solid, durable spanner features four 12-point socket sizes: 1/2'', 9/16'', 5/8'' and 3/4''.

Specifications
Type:
Insulating
Application:
Pole Hardware Installation and Removal
Special Features:
Oversized Pawl & Higher Tool Count
Head Type:
Forged
Material:
Steel
Finish:
Chrome Plated
Size:
1/2'', 9/16'' 5/8'', 3/4''
Swing Arc:
7.5 degrees
Number of Points:
12
Number of Teeth:
48
Overall Length:
9.28'' (23.6 cm)
Overall Height:
1.10'' (2.80 cm)
Overall Width:
1.60'' (4.1 cm)
Weight:
15 oz (425 g)
UPC:
092644680281
Additional Information
Feature Icon klein/wf_tip-12pt-socket.jpg
Warnings
  • Always wear eye protection.
  • Do NOT push or hammer wrench.
  • Do NOT extend handle length.
  • Inspect before each use.
  • Because moisture, films or other surface contaminants are conductive, Klein insulating tools must be kept clean, dry and free of any surface contaminants.
