Insulated Lineman's Pliers, 245 mm
D20009NEINS
- Pliers are individually tested to meet or exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and are clearly marked with the official 1000-volt rating symbol

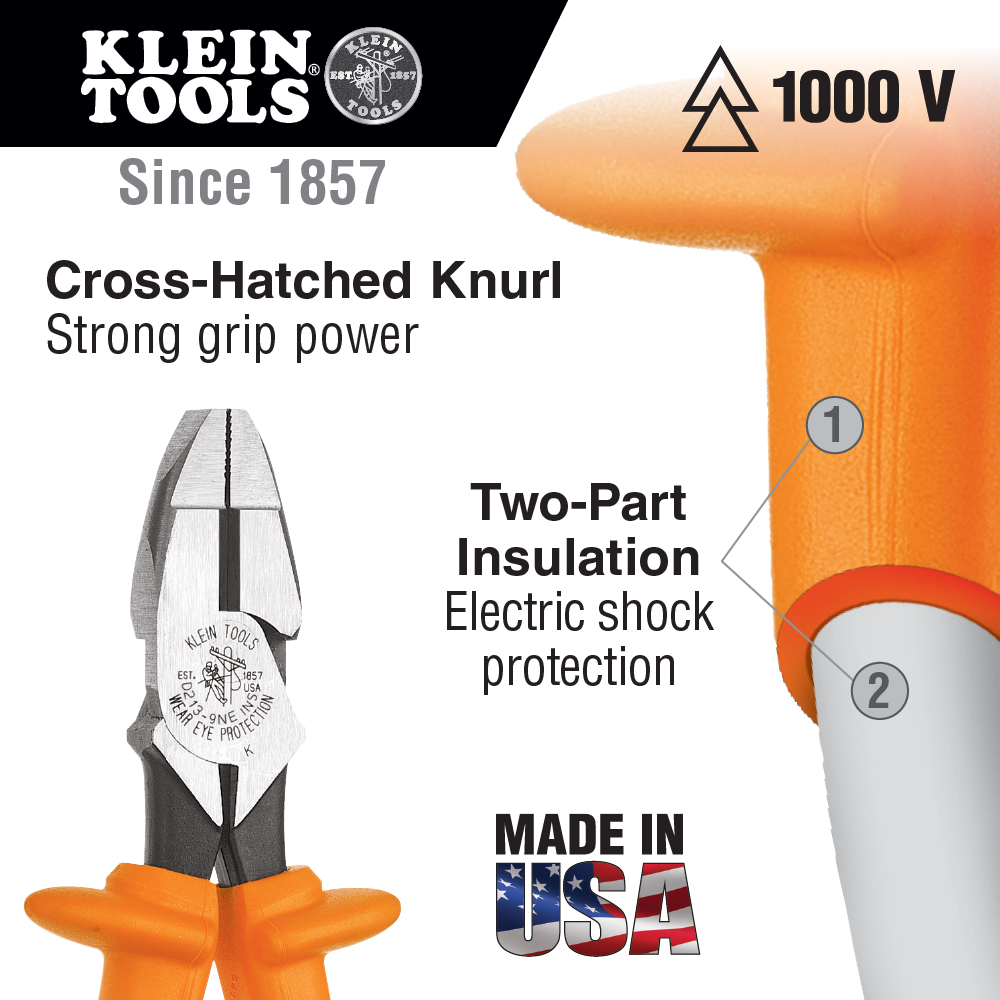

- Two layers of insulation provide protection against electric shock, while the integral guards help prevent hand contact with conductive parts
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool, with a flame retardant, impact-resistant, bright orange outer coating
- High-leverage design for 46% greater cutting and gripping power than other plier designs
- Made in the USA
- Cuts ACSR, screws, nails and most hardened wire
- Precision machined knives cut cleanly and crisply, even on fine stranded wire, mule tape and pull line
Videos
Images
High-Res JPG

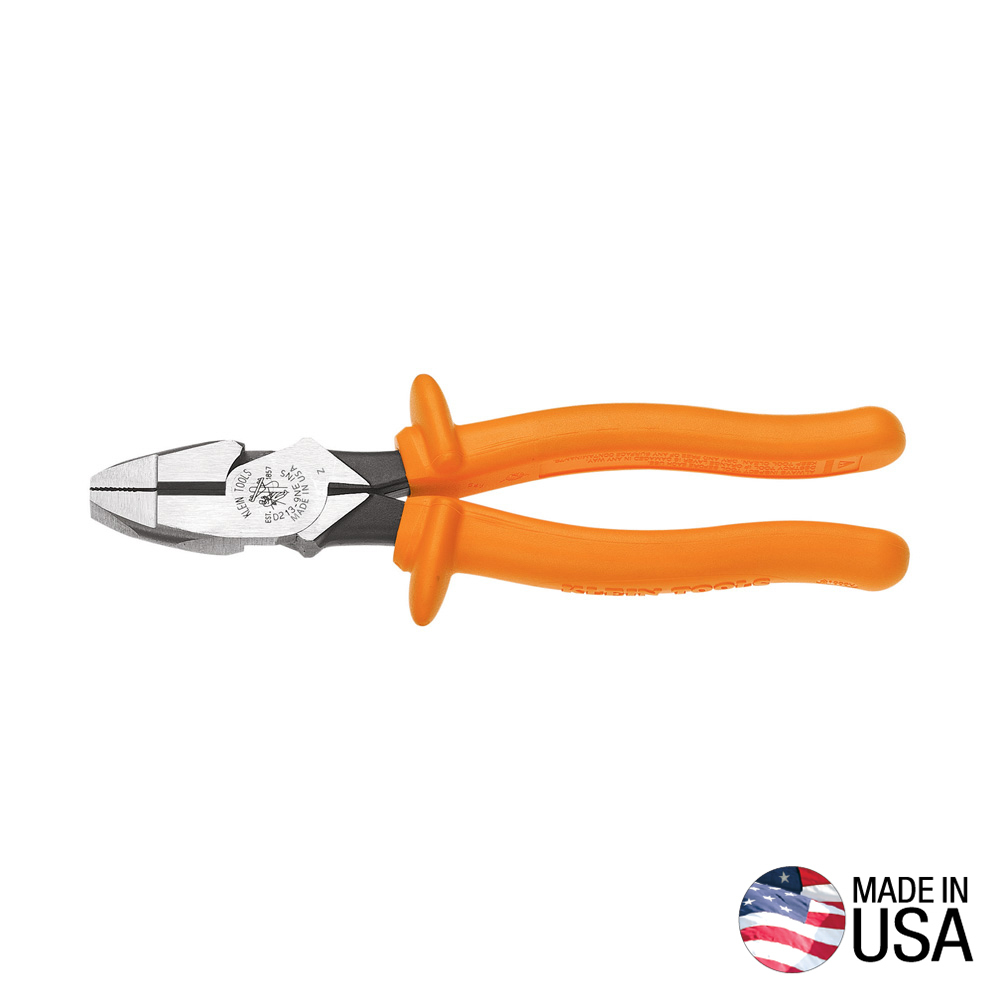

These Klein Tools 9'' Insulated Side-Cutting Pliers have jaws knurled with a cross-hatched pattern for excellent grip. They are made of steel alloy for strength and performance. They also feature flame and impact retardant coating, as well as insulation to protect up to 1000 volts.
Specifications
Type:
Side-Cutting Pliers
Application:
ACSR, screws, nails and most hardened wires
Special Features:
Integral guards help prevent hand contact with conductive parts.
Overall Length:
9.68'' (24.6 cm)
Material:
Induction-Hardened Steel
Nose Type:
New England
Jaw Length:
1.594'' (4 cm)
Jaw Width:
1.25'' (3.2 cm)
Jaw Thickness:
0.6'' (1.5 cm)
Jaw Capacity:
1.43'' (3.6 cm)
Knife Length:
0.781'' (2 cm)
Cut Style:
Side-cutting
Joint Type:
Hot-riveted
Handle Colour:
Orange
Handle Finish:
2-layer
Handle Length:
5.73'' (14.6 cm)
Insulated:
Yes
Weight:
1.3 lb (0.6 kg)
UPC:
092644700859
Additional Information
Warnings
- Only use tools that are marked with the official international 1,000-volt rating symbol shown above, if there is any chance that the tools will make contact with a live electrical source.
- Whenever possible, always switch off lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with a live source.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact a live electrical source.
- Wear approved eye protection. Always inspect your tools before use.
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Because moisture, films or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free from any surface contaminants.
