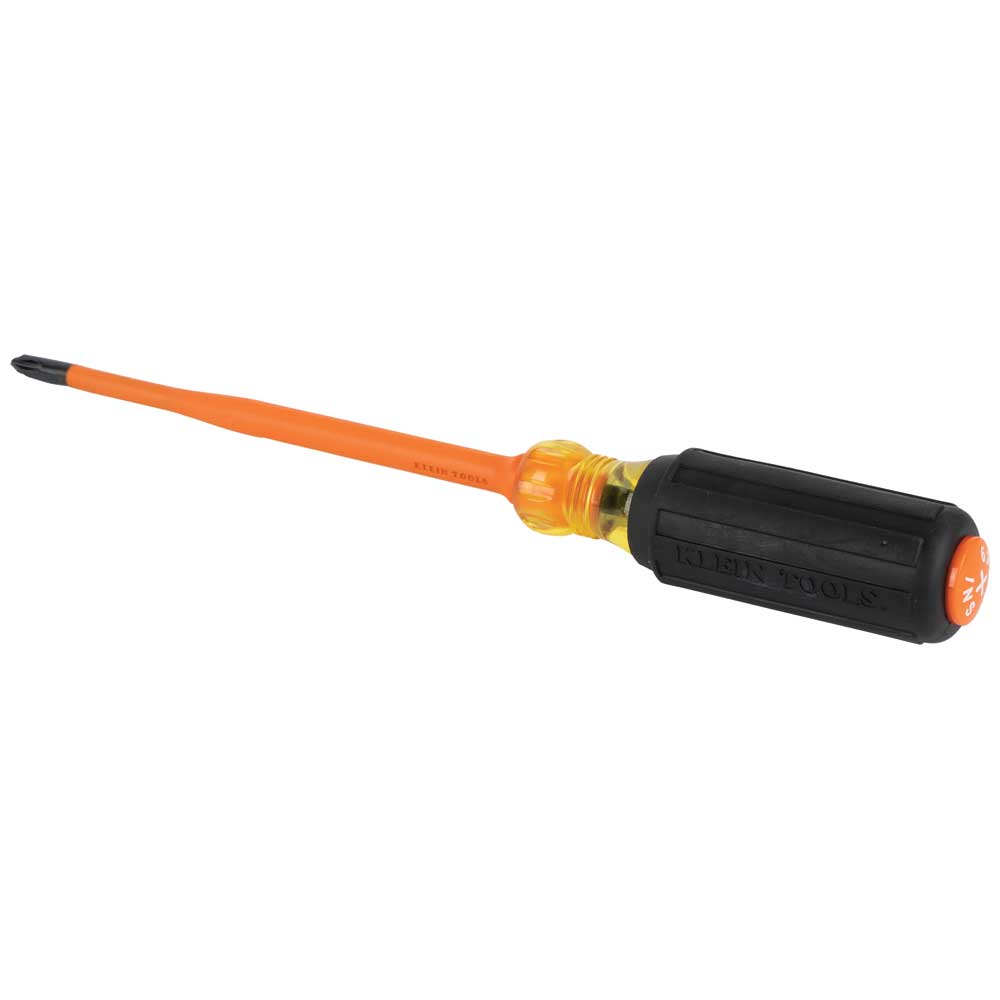

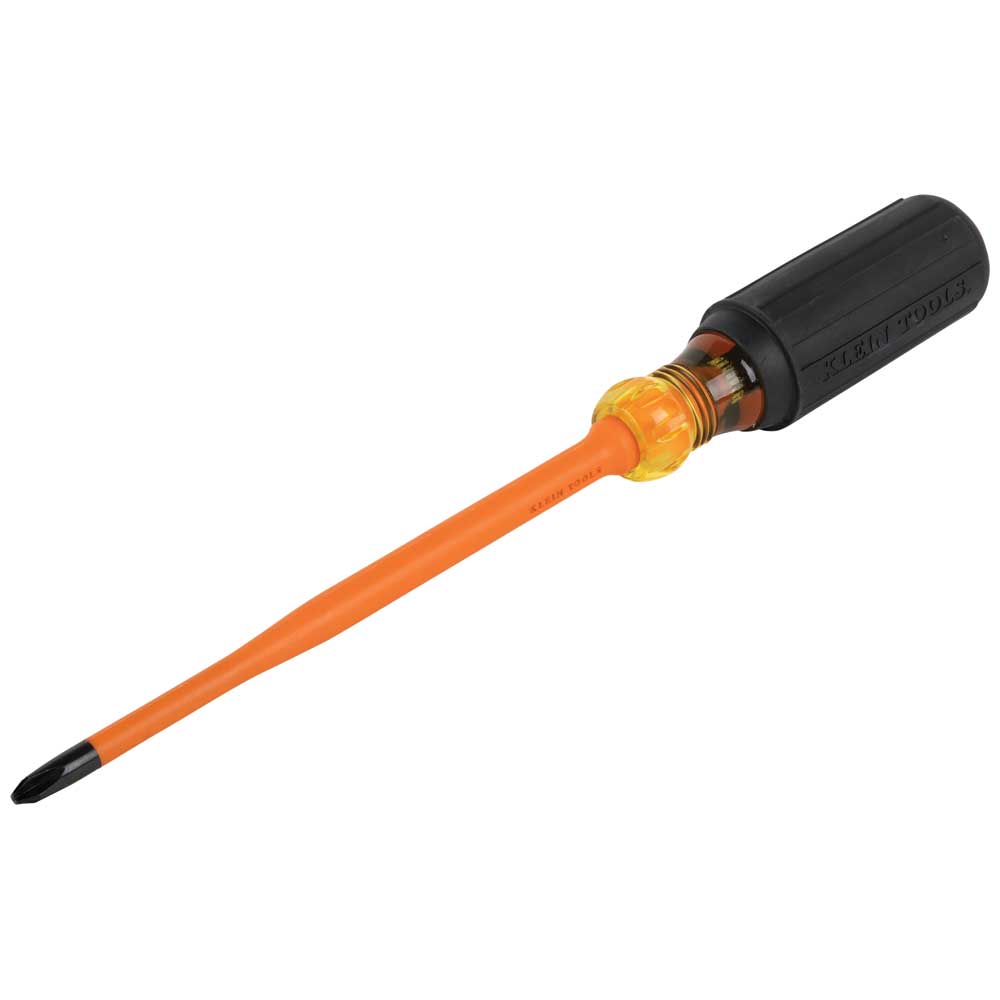

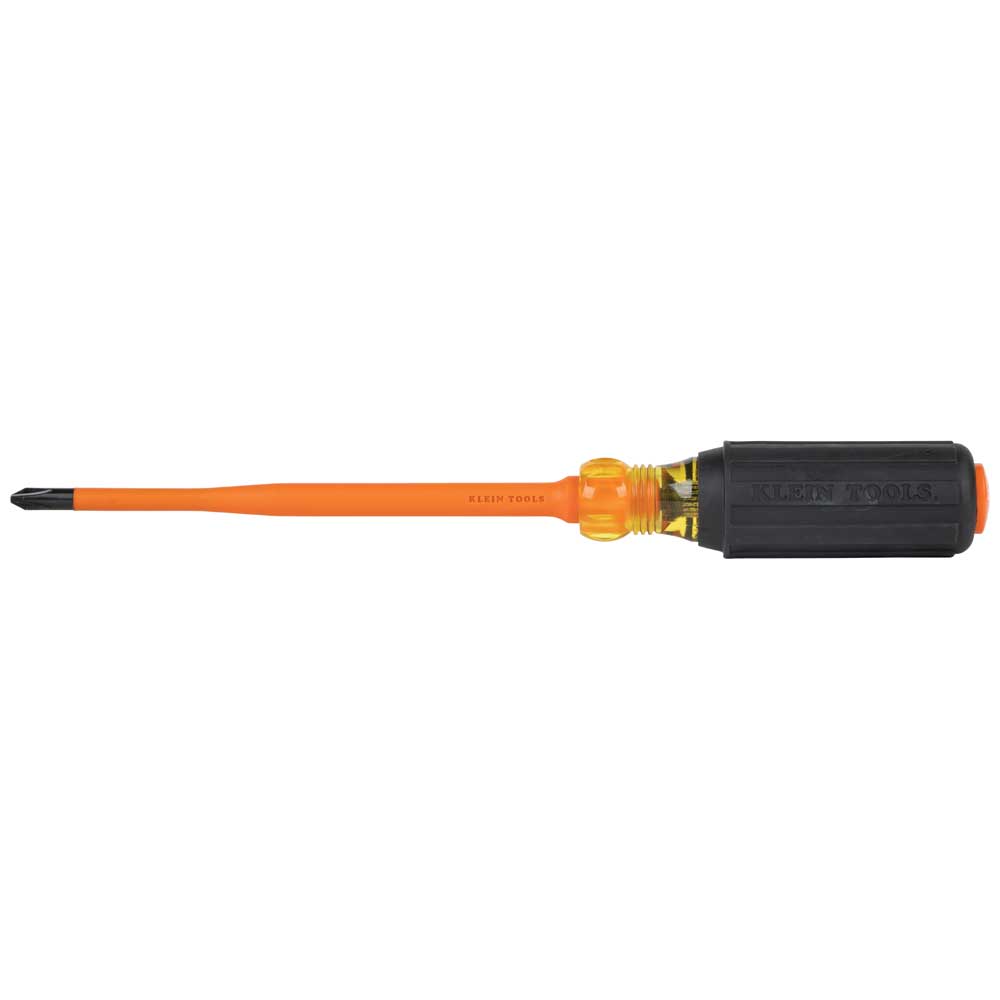

Slim-Tip 1000 V Insulated Screwdriver, No. 2 Phillips, 15 cm Round Shank
6936INS

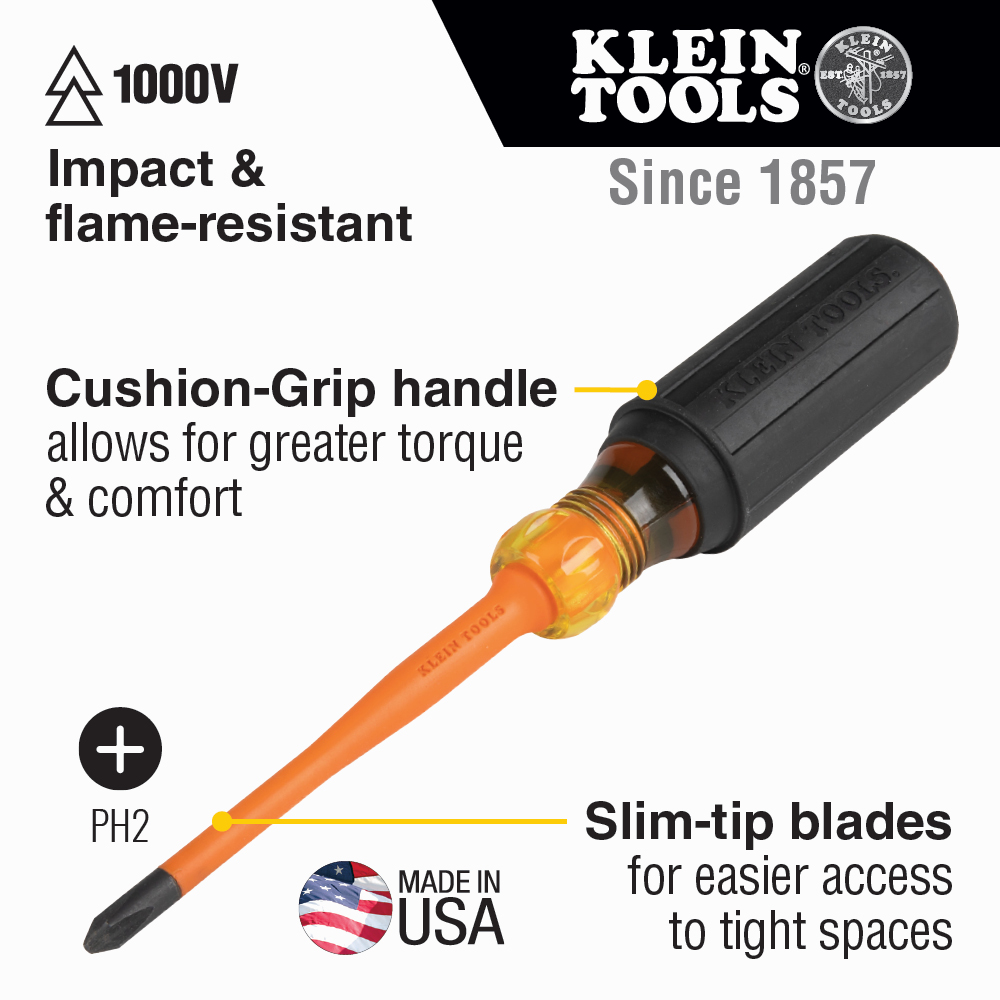

- 6” round shank, No. 2 Phillips tip, insulated screwdriver with a slim tip that allows for greater access into tight spaces
- 1000V-rated layer of orange impact and flame-resistant insulation protects from electric shock

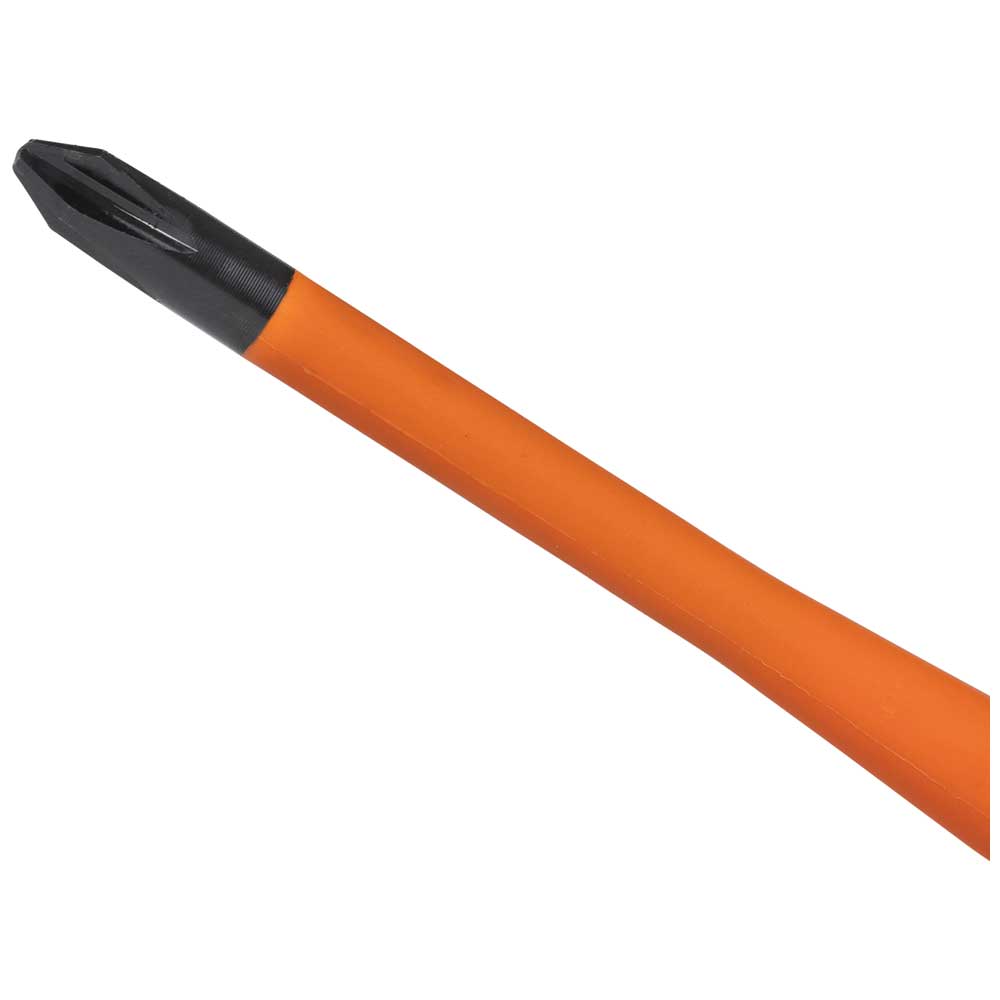

- Insulated blade is flush with the tip to help reduce nicking the insulation and gain access into tight terminal blocks
- Cushion-Grip™ handles for greater torque and comfort
- Made in the USA

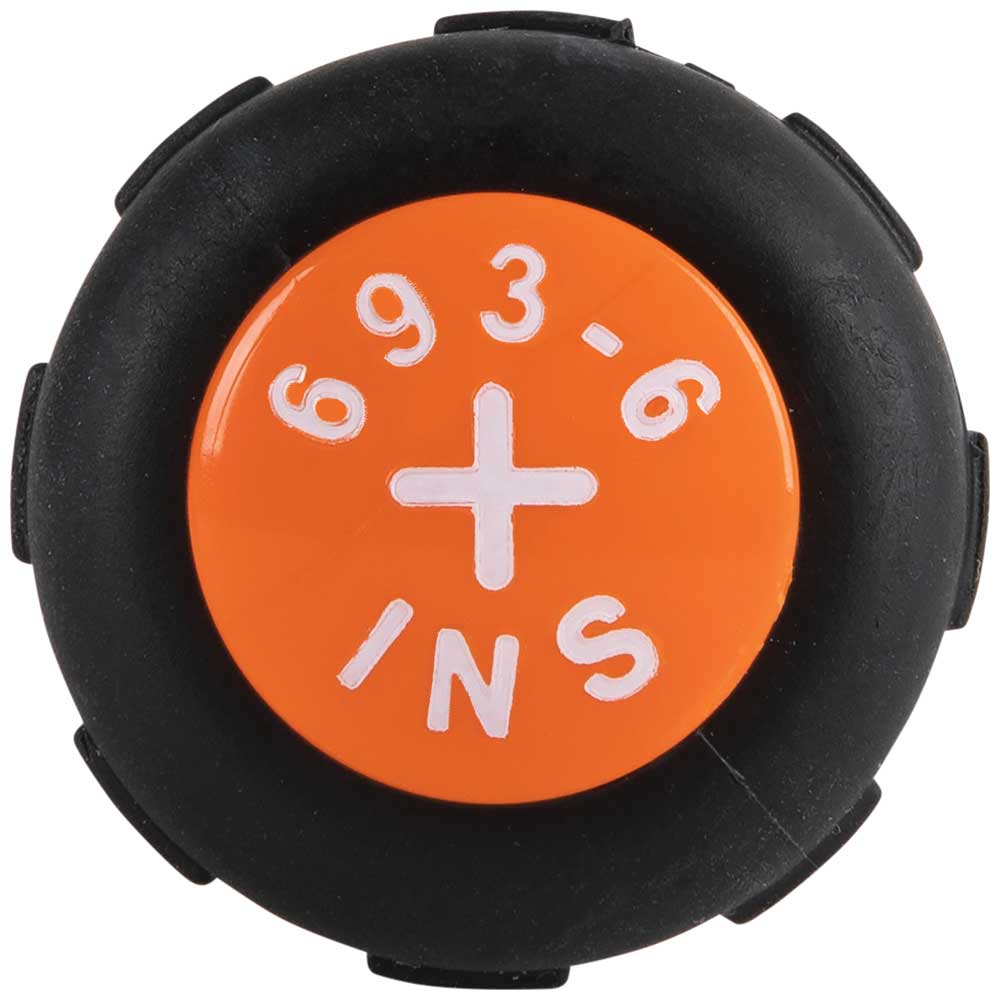

- Tip-Ident™ quickly identifies the tip type and orientation
- Meets or exceeds ASTM F1505-16 and IEC 60900:2018
Klein Tools' Slim-Tip Insulated Screwdrivers have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energised sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000V rating symbol. A must-have for any electrician’s tool bag, these screwdrivers are available in 4” and 6” lengths and a variety of tips.
Specifications
Application:
For working close to live electrical circuits
Special Features:
Slim Profile Tip
Tip Type:
Phillips
Magnetic:
No
Tip Size:
No. 2
Shank Type:
Round
Shank Length:
6'' (15.2 cm)
Material:
Steel, Plastic
Insulated:
Yes
Handle Material:
Rubber
Handle Colour:
Black
Handle Length:
4.31'' (10.9 cm)
Handle Diameter:
1.25'' (3.2 cm)
Colour Code:
Orange
Overall Length:
10.31'' (26.2 cm)
Overall Height:
1.25'' (3.2 cm)
Overall Width:
1.25'' (3.2 cm)
Standard:
ASTM F-1505-16, IEC 60900:2018
Type:
Slim-Tip Insulated Screwdriver
Weight:
7.5 oz (213 g)
UPC:
092644328213
Warnings
- Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with a live electrical source.
- Whenever possible, always switch off lines and equipment prior to working on or around them.
- Always inspect your tools before use.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact a live electrical source.
- Keep tool clean, dry and free from any surface contaminants.
