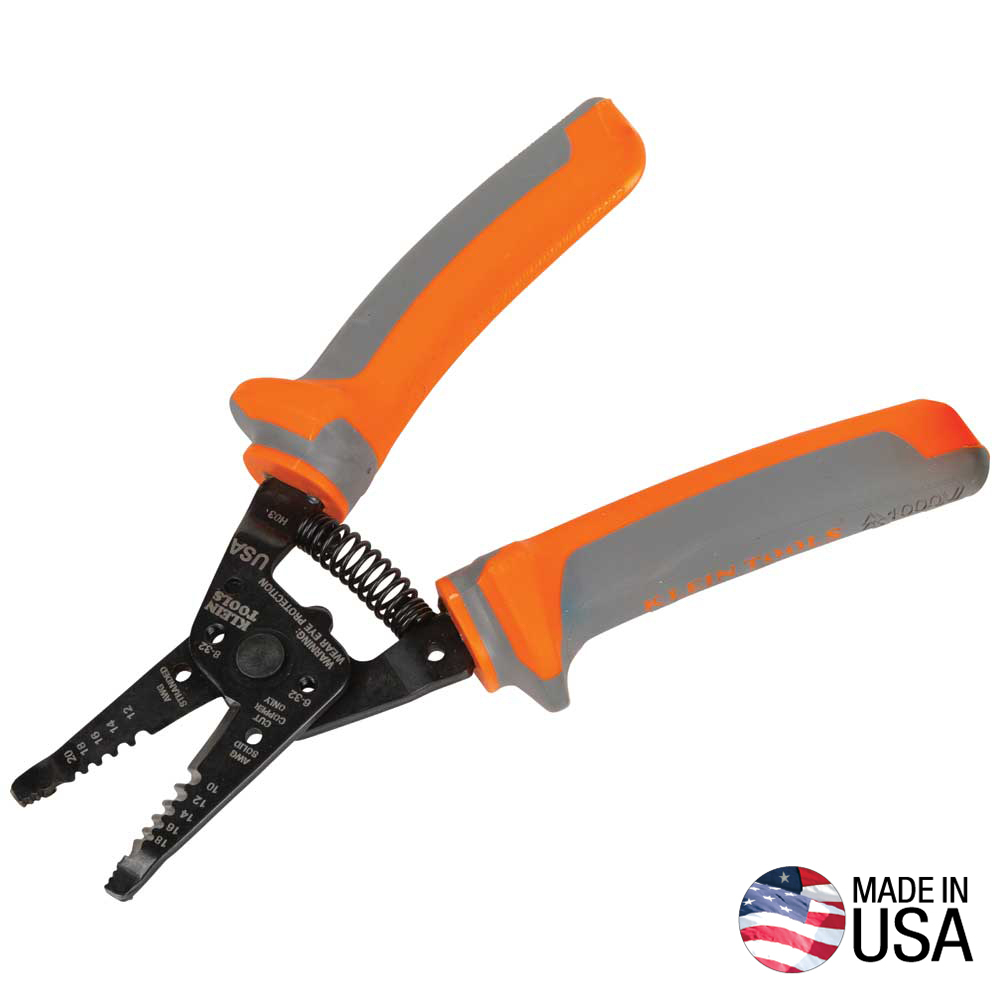

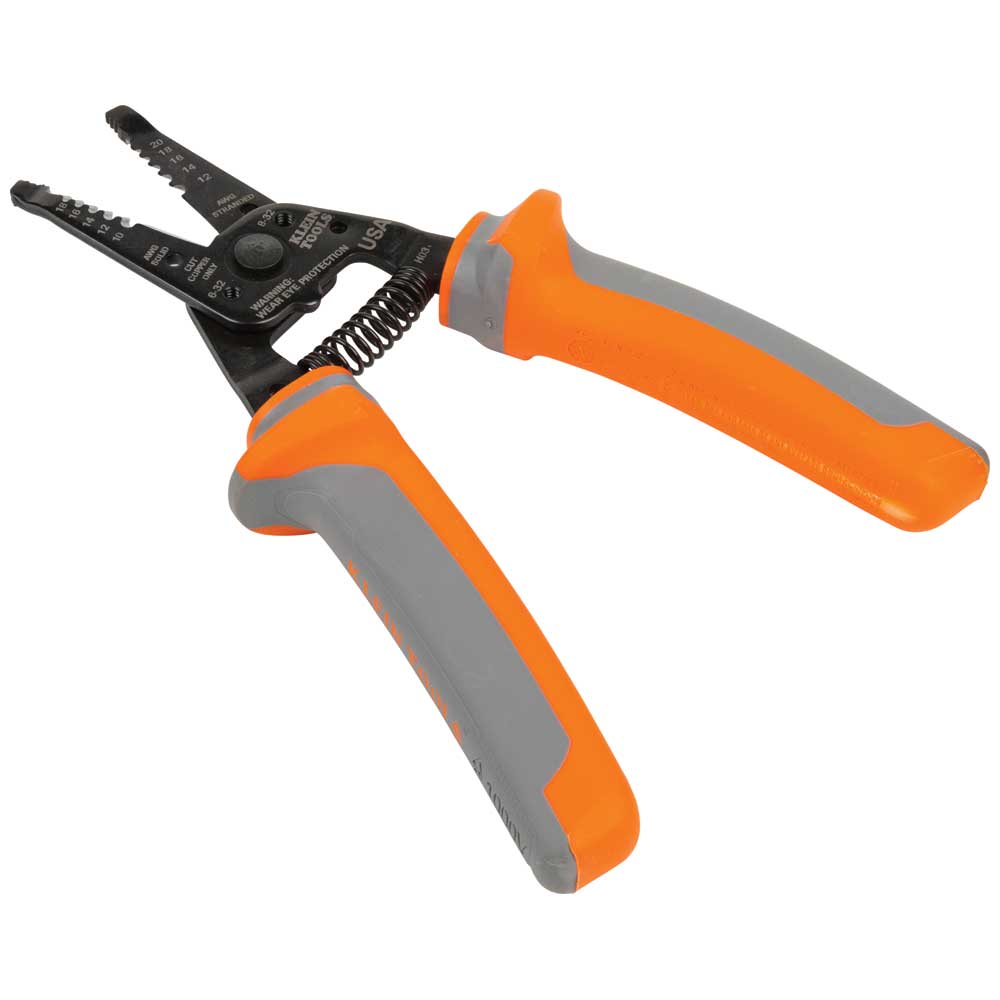

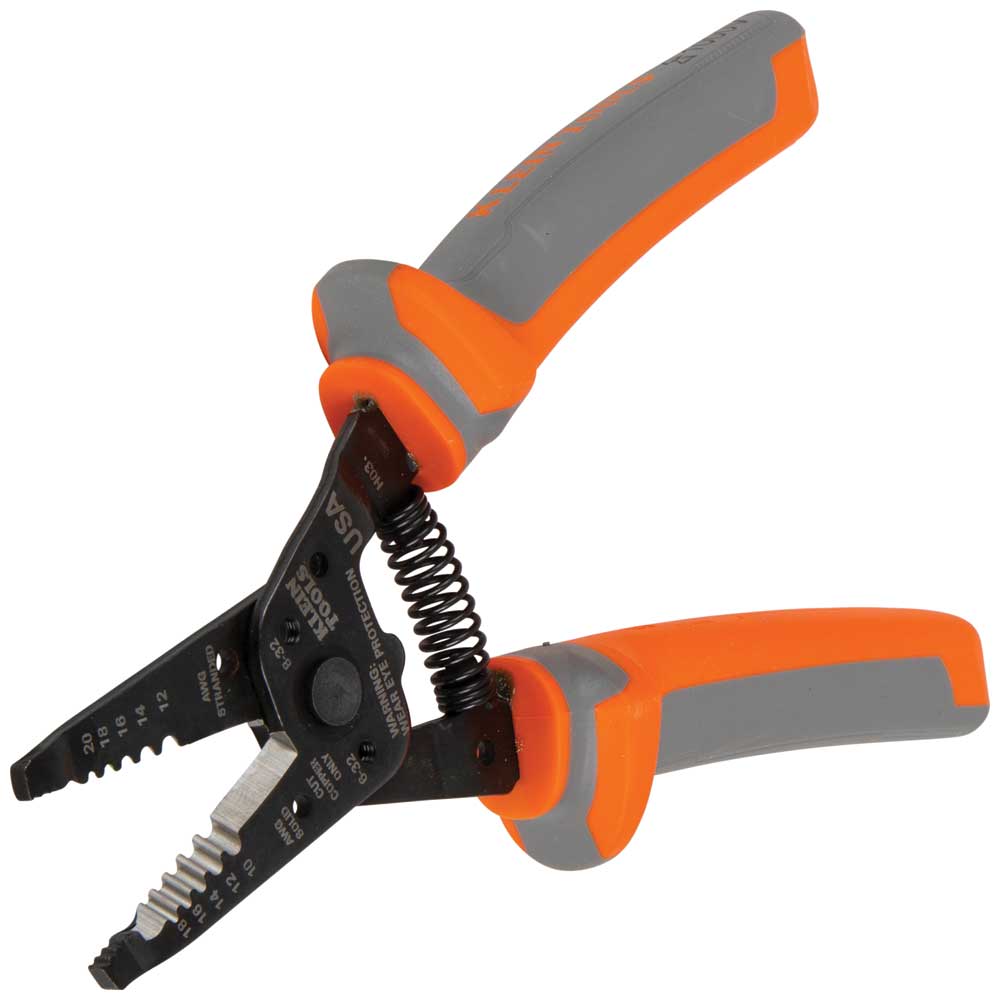

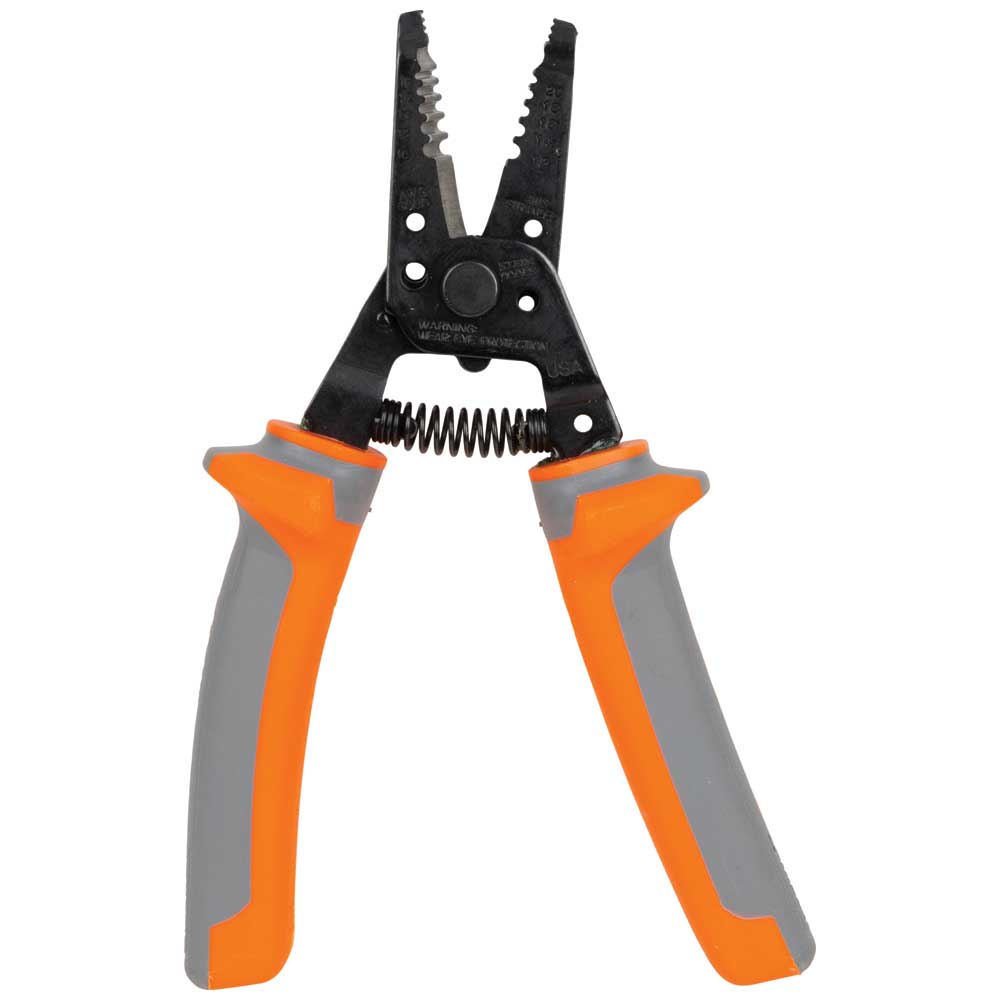

Insulated Klein-Kurve™ Wire Stripper and Cutter
11055RINS
- Insulated Wire Stripper/Cutter is individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools

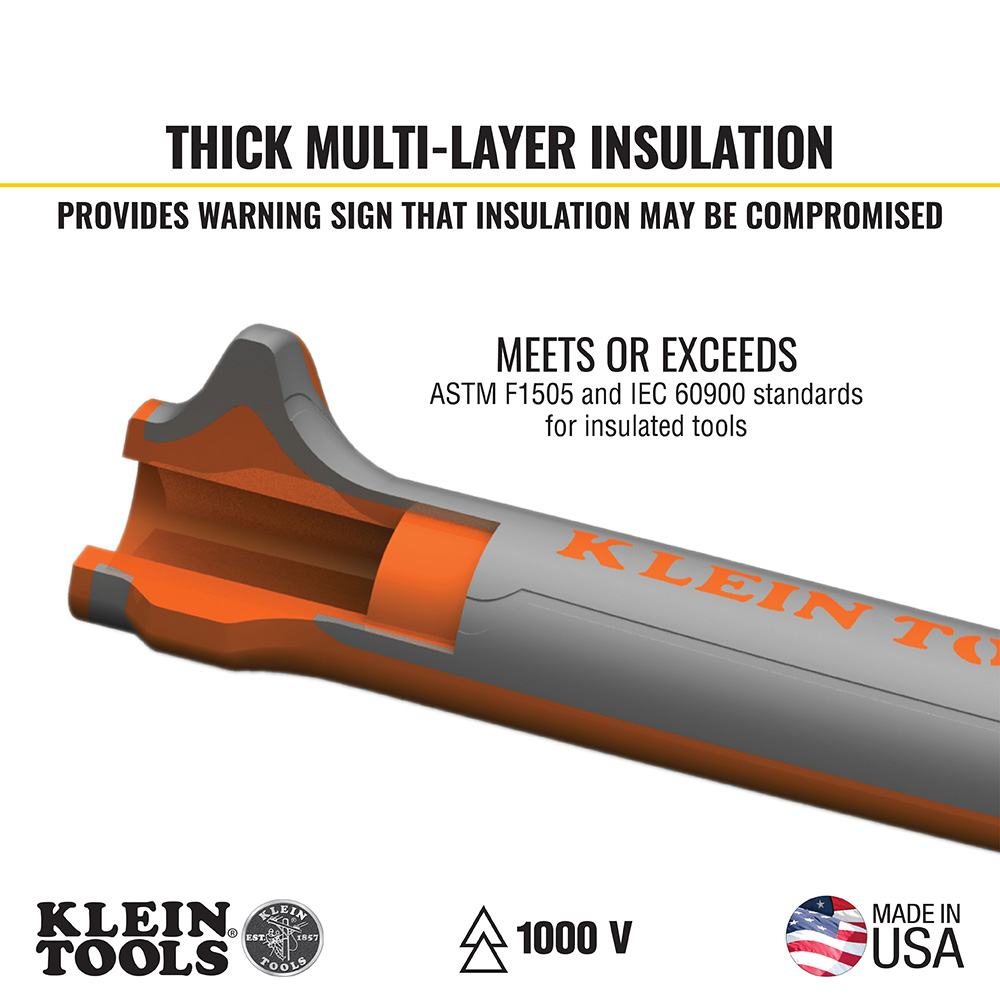

- Thick multi-layer grip design provides protection against electric shock

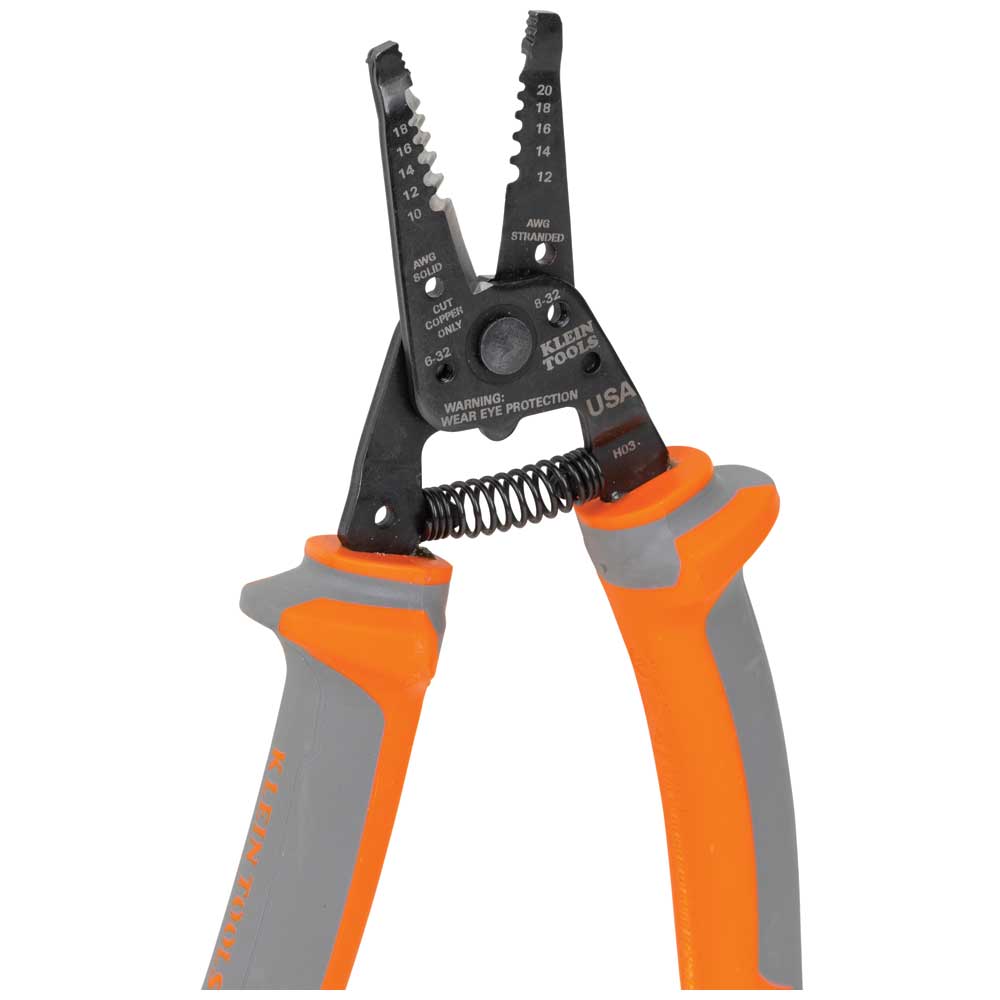

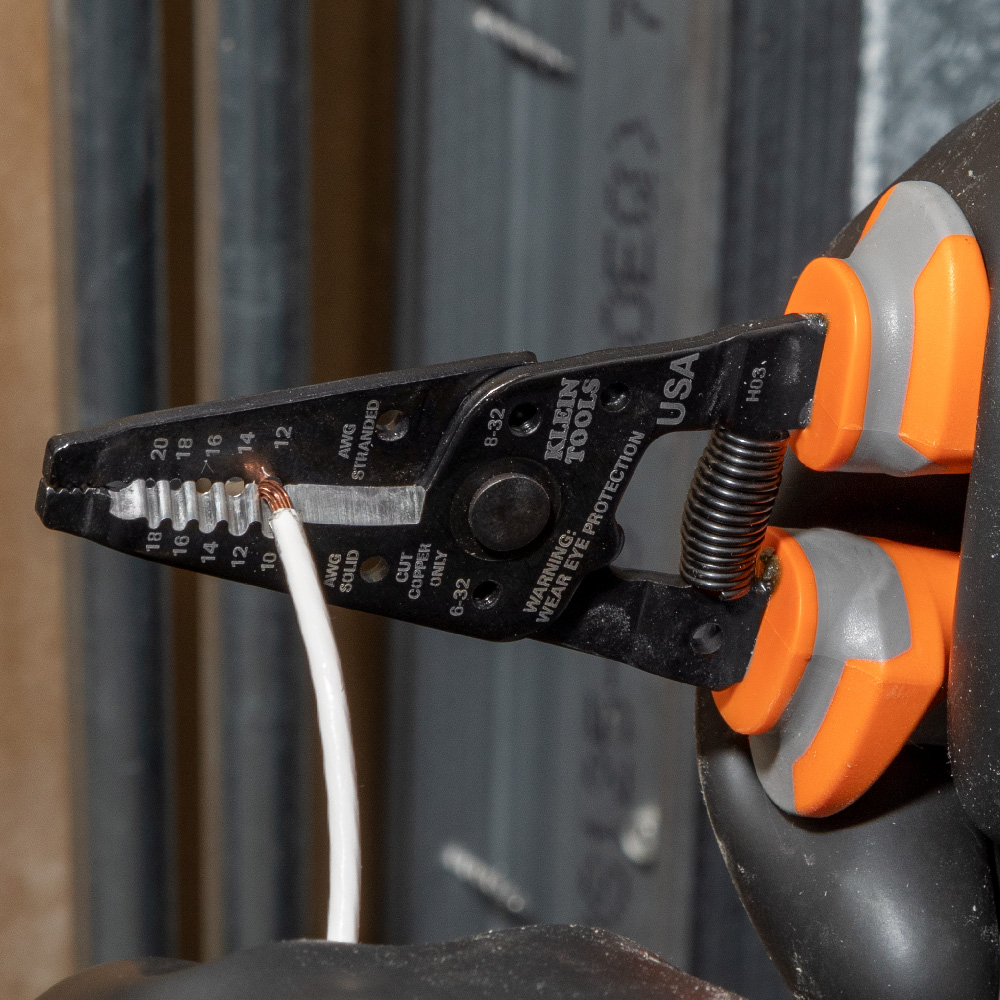

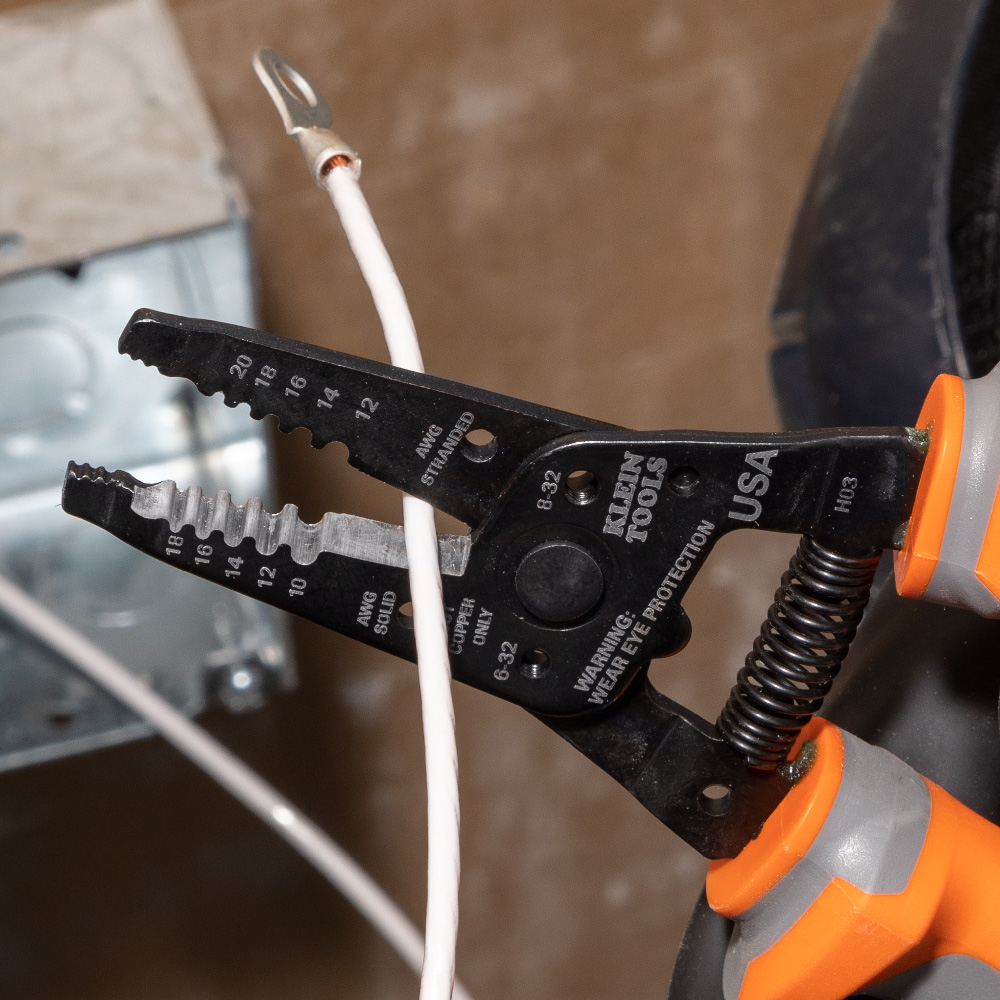

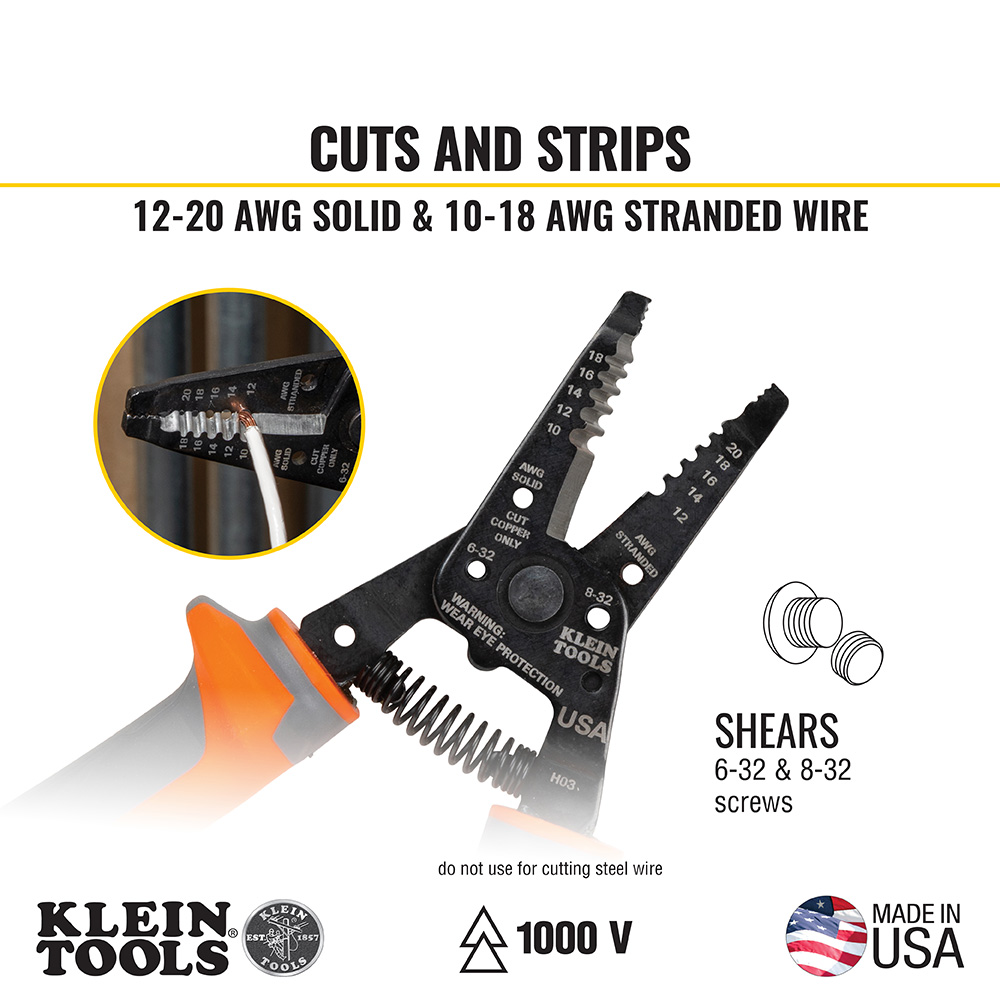

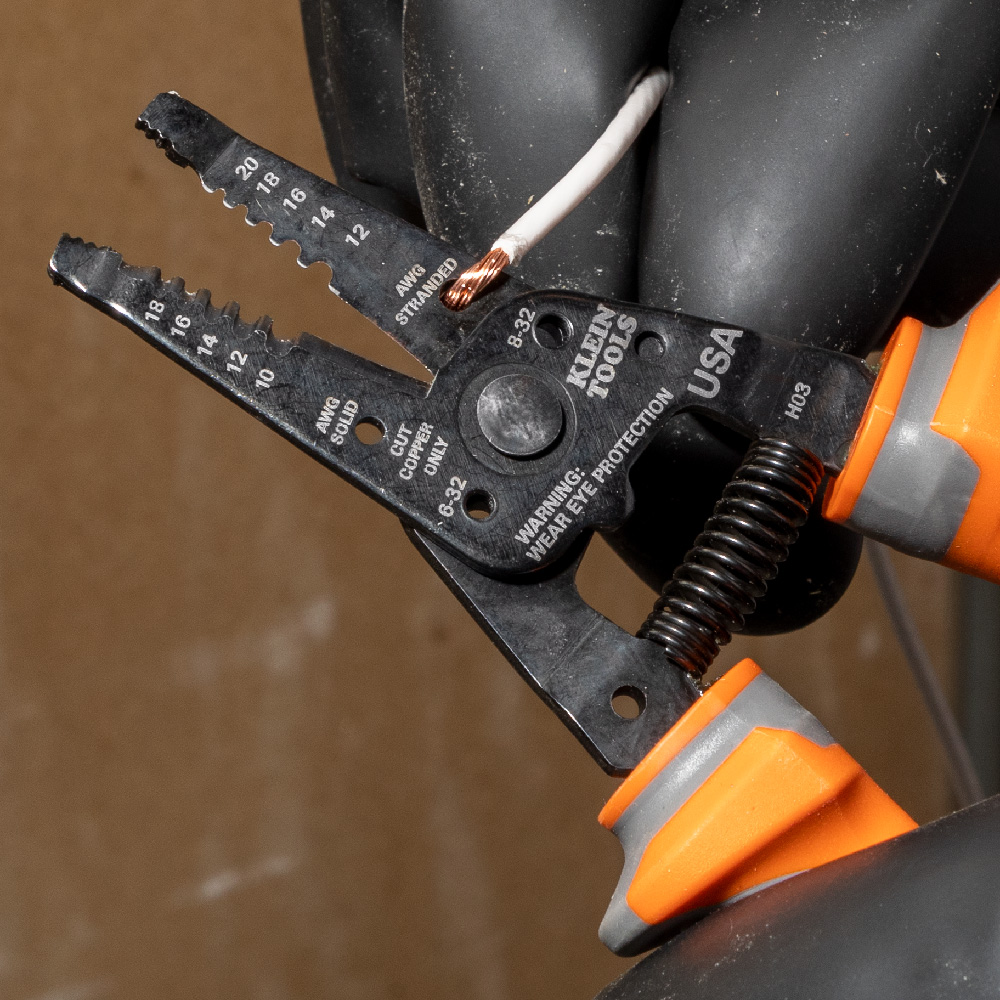

- Cuts, strips and loops both 10-18 solid and 12-20 stranded AWG wire
- Shears 6-32 and 8-32 screws cleanly.
- Made in the USA

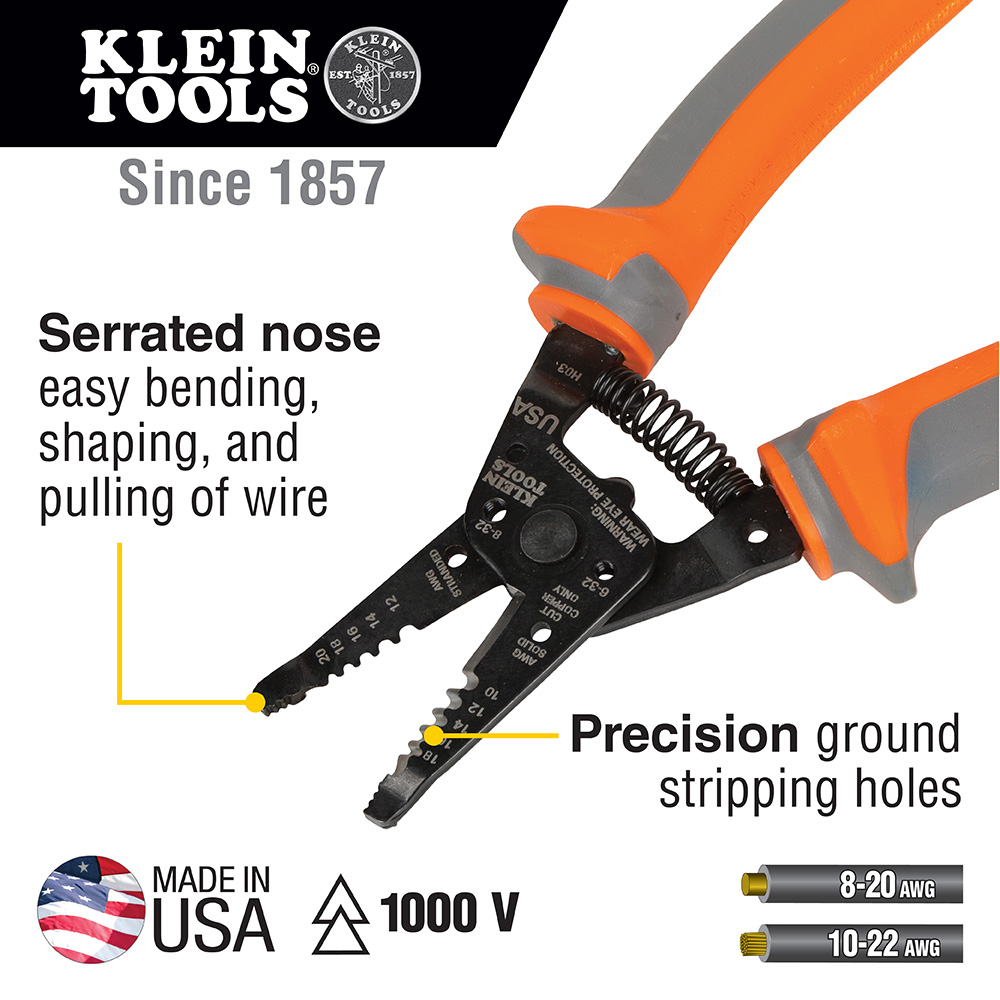

- Shear-type cutting blades for clean cuts
- Spring-loaded action for self-opening
- DO NOT use to cut steel wire

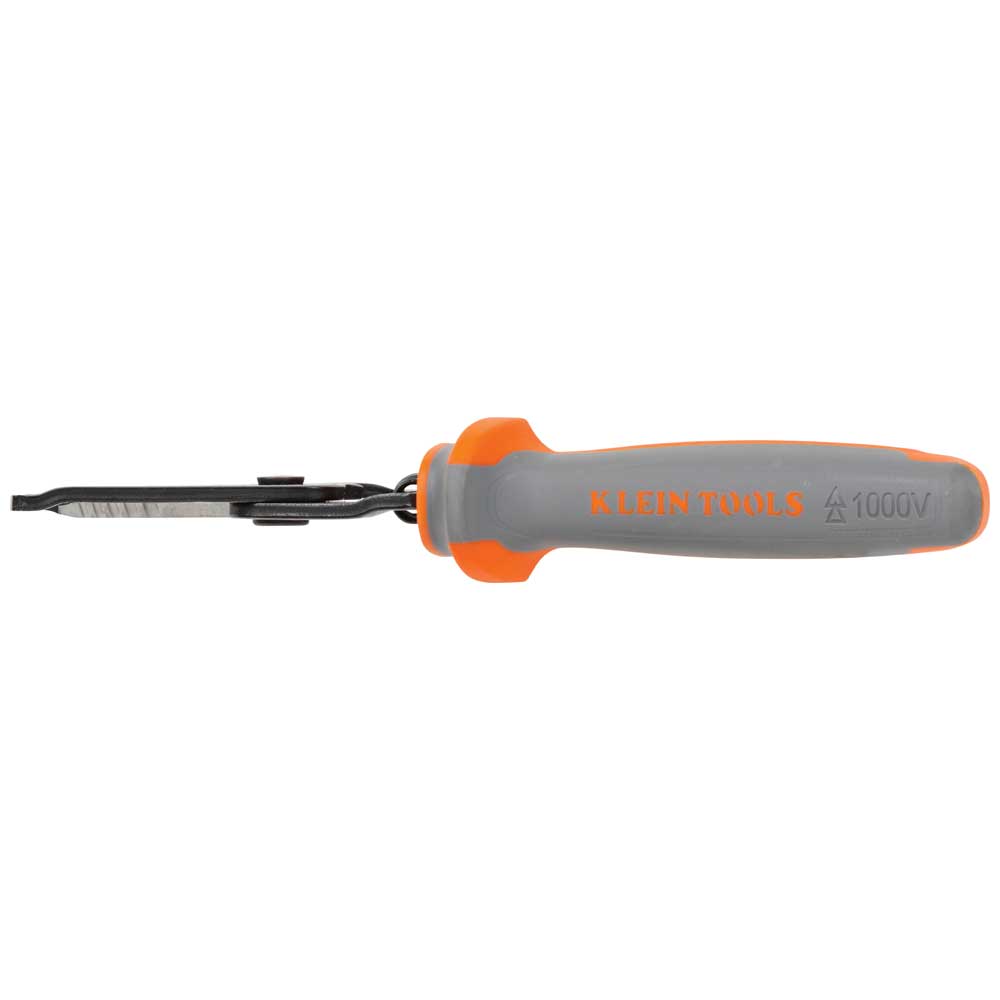

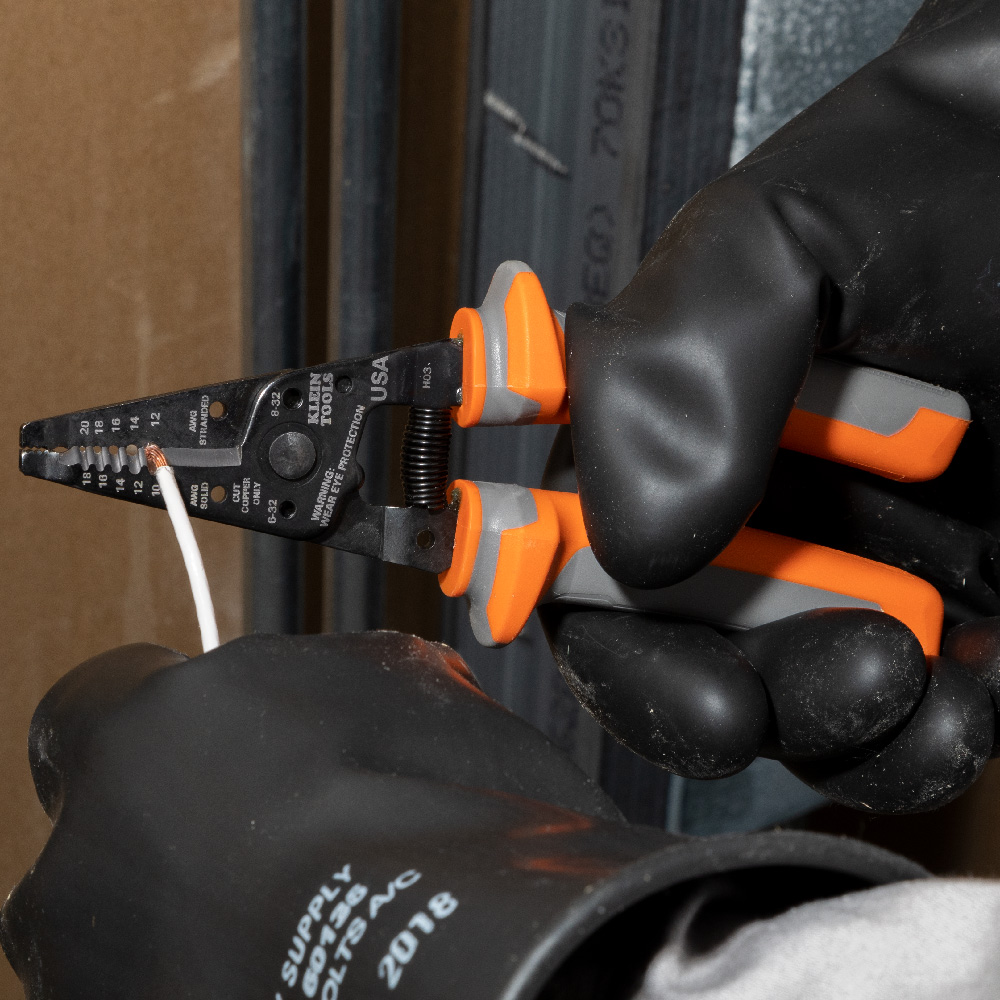

Guard against electric shock when working on live wires with the Klein Tools Insulated Wire Stripper/Cutter. The thick multi-layer grips protect up to 1000V. Made in the USA, this tool cuts, strips and loops solid and stranded AWG wire, as well as shears 6-32 and 8-32 screws. This professional grade tool with 1000V rated protection allows you to get the job done safely.
Specifications
Type:
Insulated
Application:
Wire Stripping and Cutting
Special Features:
1000V Rated
Material:
Hardened steel
Insulated:
Yes
Strips and Cuts:
10-18 AWG Solid, 12-20 AWG Stranded
Screw Shearing:
Yes; 6-32, 8-32
Wire Gauge:
10-18 AWG Solid, 12-20 AWG Stranded
Hold-Open Spring:
Yes
Standard:
IEC 60900 and ASTM F1505
Overall Length:
7.7'' (19.5 cm)
Overall Height:
1.2'' (3.1 cm)
Overall Width:
4.75'' (12.1 cm)
Handle Colour:
Orange/Light Grey
Handle Finish:
Insulated
Handle Material:
Multi-Layer Insulation
Weight:
7.7 oz (218 g)
UPC:
092644740695
Additional Information
Warnings
- Only use tools that are marked with the official international 1,000-volt rating symbol shown above, if there is any chance that the tools will make contact with a live electrical source.
- Whenever possible, always switch off lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with a live electrical source.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact a live electrical source.
- Wear approved eye protection.
- Because moisture, films or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free from any surface contaminants.
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Do not use for cutting steel wire.
